150A Misting Kit

150A Misting Kit

$1,379.00

This high-pressure misting kit is perfect for areas up to 800 square feet. It features a robust 150A pump, plastic tubing, and all the essential fittings for hassle-free installation. The system produces an ultra-fine cooling mist and includes wireless app control, self-priming pistons, and adjustable interval misting.

Our patio misting kit includes everything you need—no extra trips to the store. All parts are included for a complete, hassle-free setup.

Easy to install with clear instructions and basic tools -no professional help needed.

Enjoy peace of mind with our worry-free 3-year warranty—your patio misting kit is fully covered for any defects or issues, no hassle, no stress.

100 in stock

SKU: FJ-150KT-0000 Categories: All Products, High Pressure Misting Kits Tag: misting-kit

Overview

Specifications

Installation

Maintenance

In The Box

Ideal for most spaces, up to 800 sqft.

Commercial-grade misting performance for easy cooling and lasting reliability.

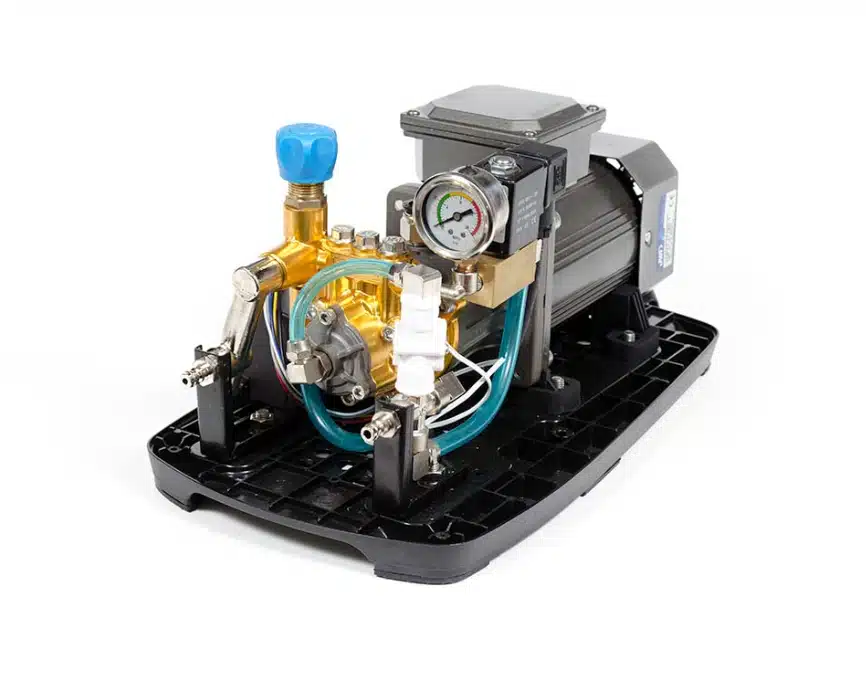

Equipped with a 3-piston self-priming pump, this high-pressure misting kit comes complete with all the tubing, fittings, and accessories for a smooth and straight forward installation.

Worry-free 3-year pump warranty
Ceramic-coated stainless steel pistons with serviceable piston seals
Misting control via the Free Android and iOS Smartphone apps
Built-in water supply sensor, pressure adjustment valve, and pressure gauge
0.5 Gallons Per Minute (GPM) capacity
Anti-drip solenoid valve
Motor overheat protection
GFCI safety power cord

Specifications

Specifications
Power	120VAC 60Hz 180W
Maximum Flow:	0.5GPM
Minimum Flow	0.18GPM
Pump operating temperature:	40°F to 130°F
Pump storage temperature:	34°F to 130°F
Dimensions:	16.5" (L) X 8" (W) X 9" (H)
Maximum pressure:	1000PSI
Noise:	56db
Oil capacity:	80mL
Water connection:	3/4 inch garden hose thread
Wireless range:	20-30ft in open space
Misting nozzle wet storage temperature:	22°F to 140°F

Min / Max nozzles at full pressure

orifice size diameter	min nozzles	max nozzles
0.1mm (0.004 inch)	20	50
0.15mm (0.006 inch)	12	40
0.2mm (0.008 inch)	10	27

Installation

Proper installation is crucial for optimal performance and longevity of your misting kit. Please follow these key guidelines to ensure safe and efficient operation:

Misting pump must be installed at or above grade level, and away from direct sunlight and rain exposure. It must not be submerged in water for any period of time.

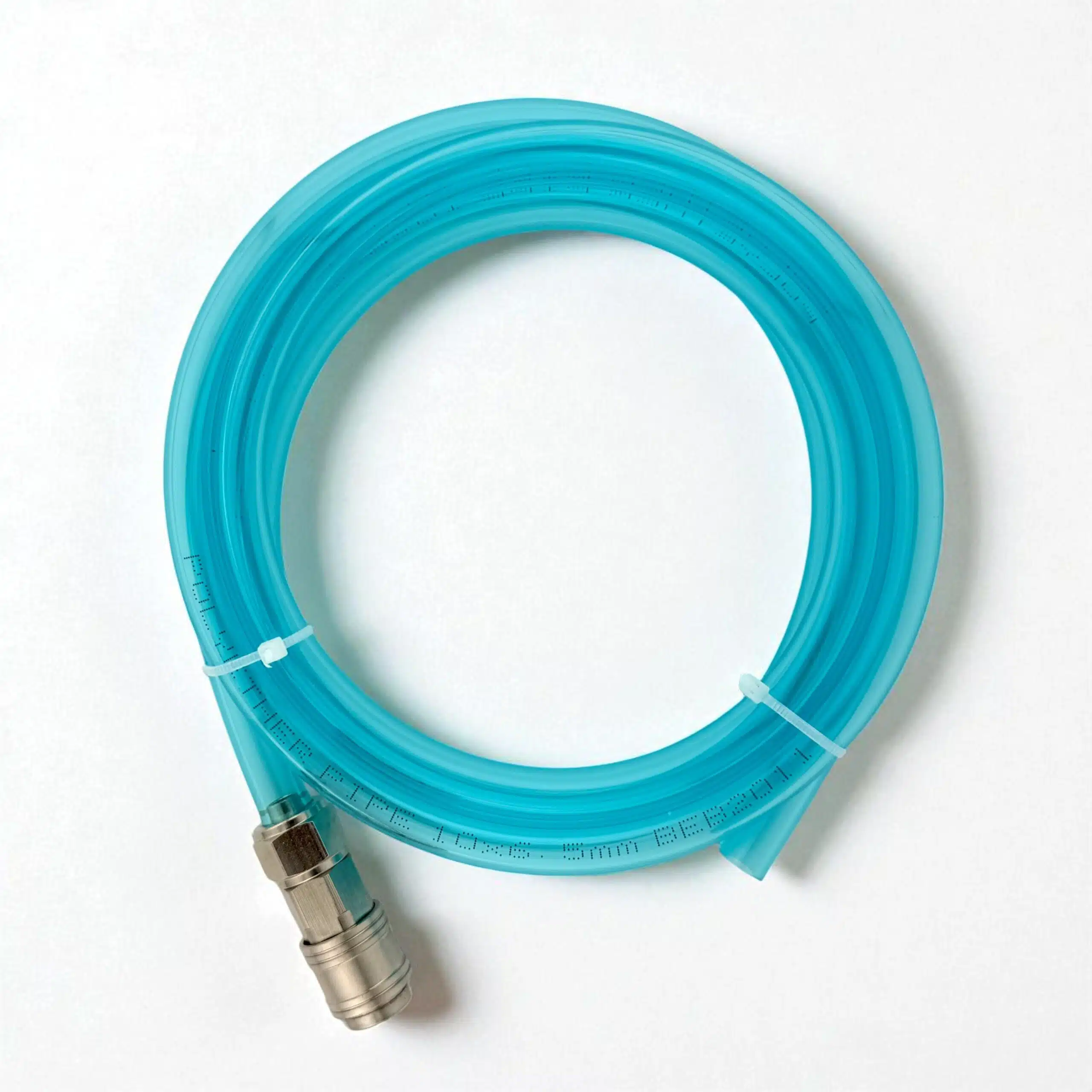

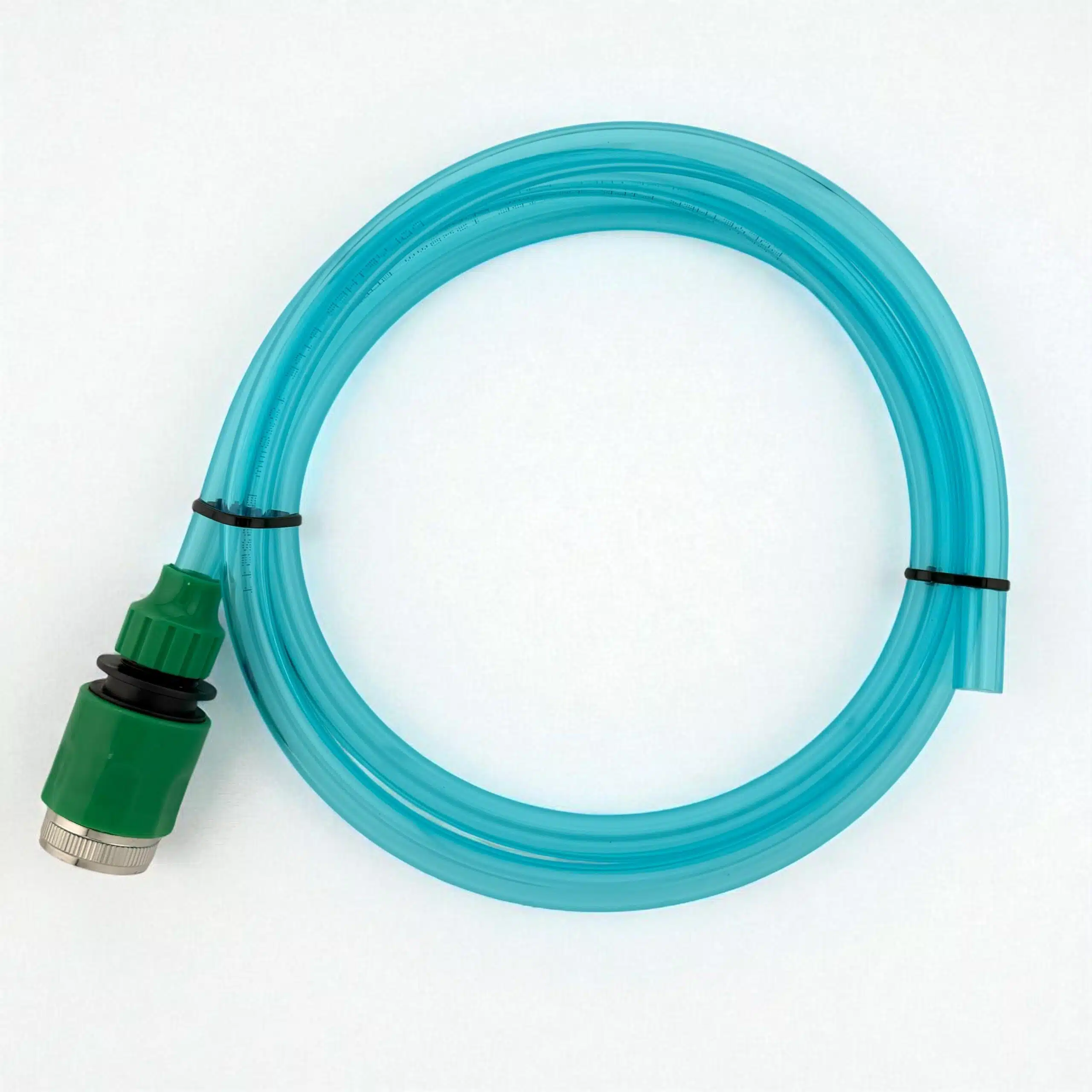

Water inlet can be fed with water from the city water line (requires a ¾ male hose bib/spigot) or gravity fed with water from a bucket. Potable water only. Included Polyether tubing should be used to connect the pump to the hose bib directly as garden hoses often react with the chlorine in the water and cause a chlorine smell in the misted air. The integrated water switch swill shutoff the pump when there is no water present.
Power: Outdoor rated 120V NEMA 5-15R power outlet is required.

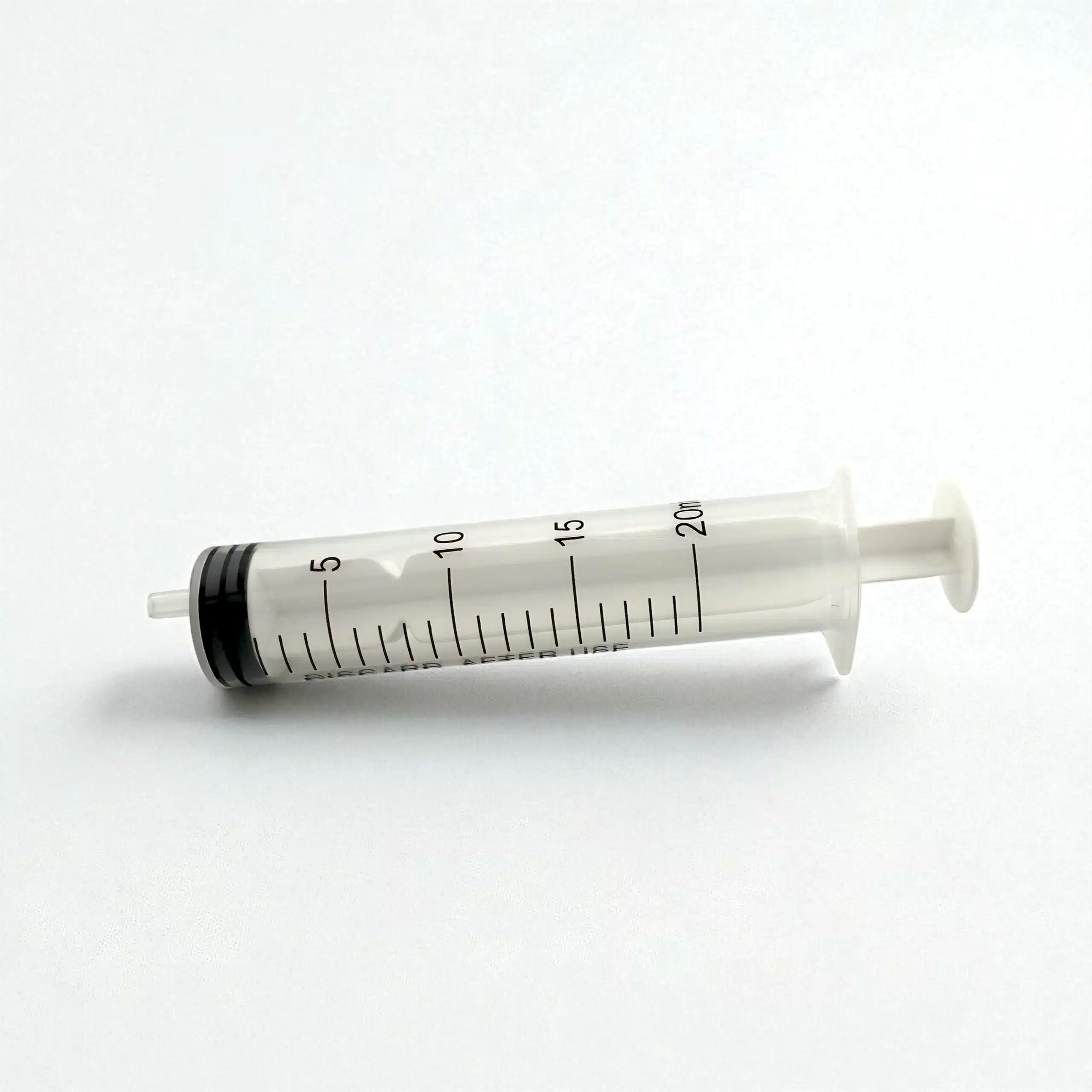

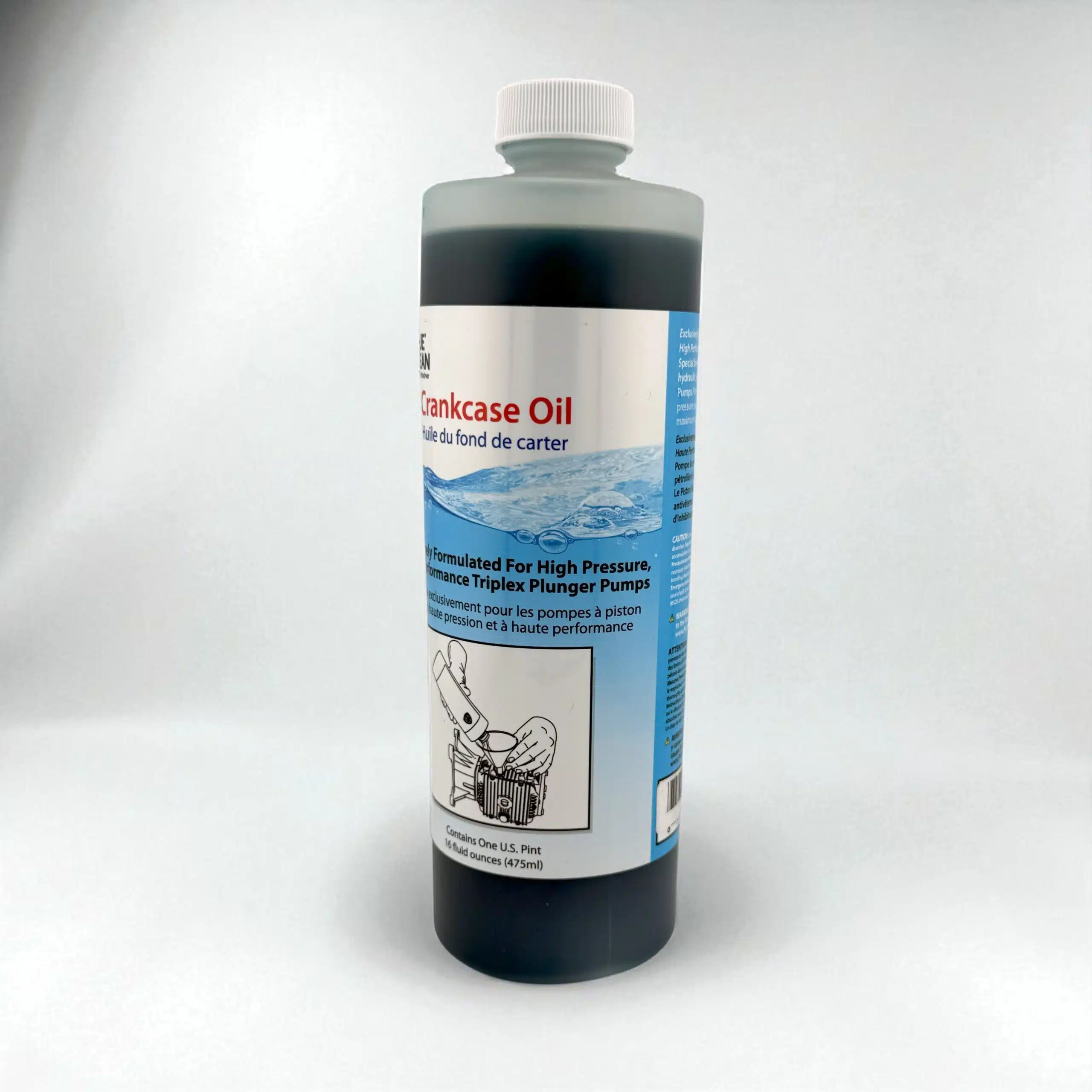

Pump Oil must be added before powering On the pump for the first time.

Regular maintenance is essential to ensure reliable operation and extend the lifespan of your misting kit. Follow these maintenance guidelines to keep the system in optimal condition:

Requires simple oil change every 300-500 hours, or once a year.
Requires winterization for areas where temperatures drop below freezing. Water must be drained from all tubing and filters, pump and ceramic nozzles removed and stored at above freezing temperatures.

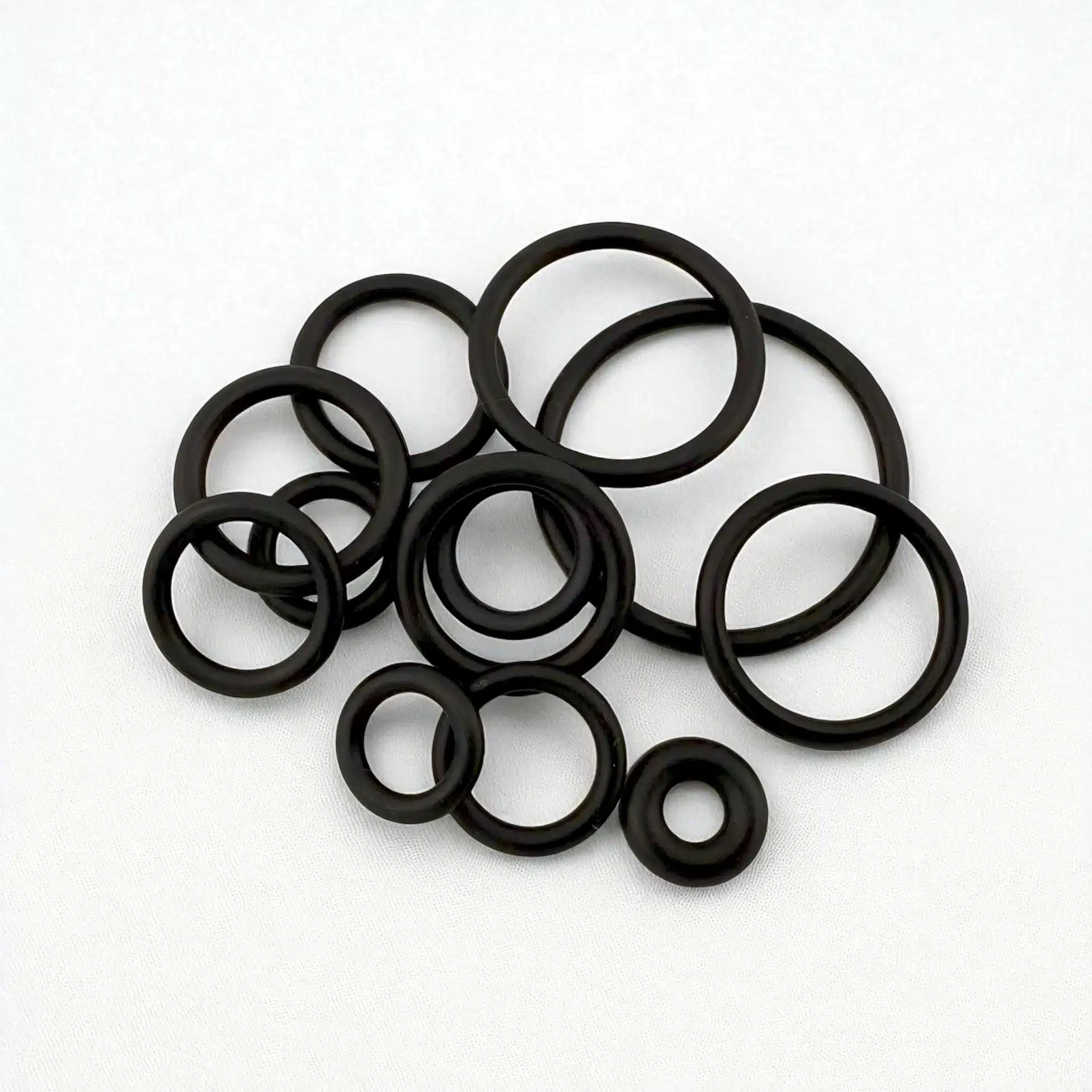

May require water, o-ring, and oil seal change after 1500-2000hrs (2000hrs translates to 7 years of moderate use or 3 years of very heavy use)

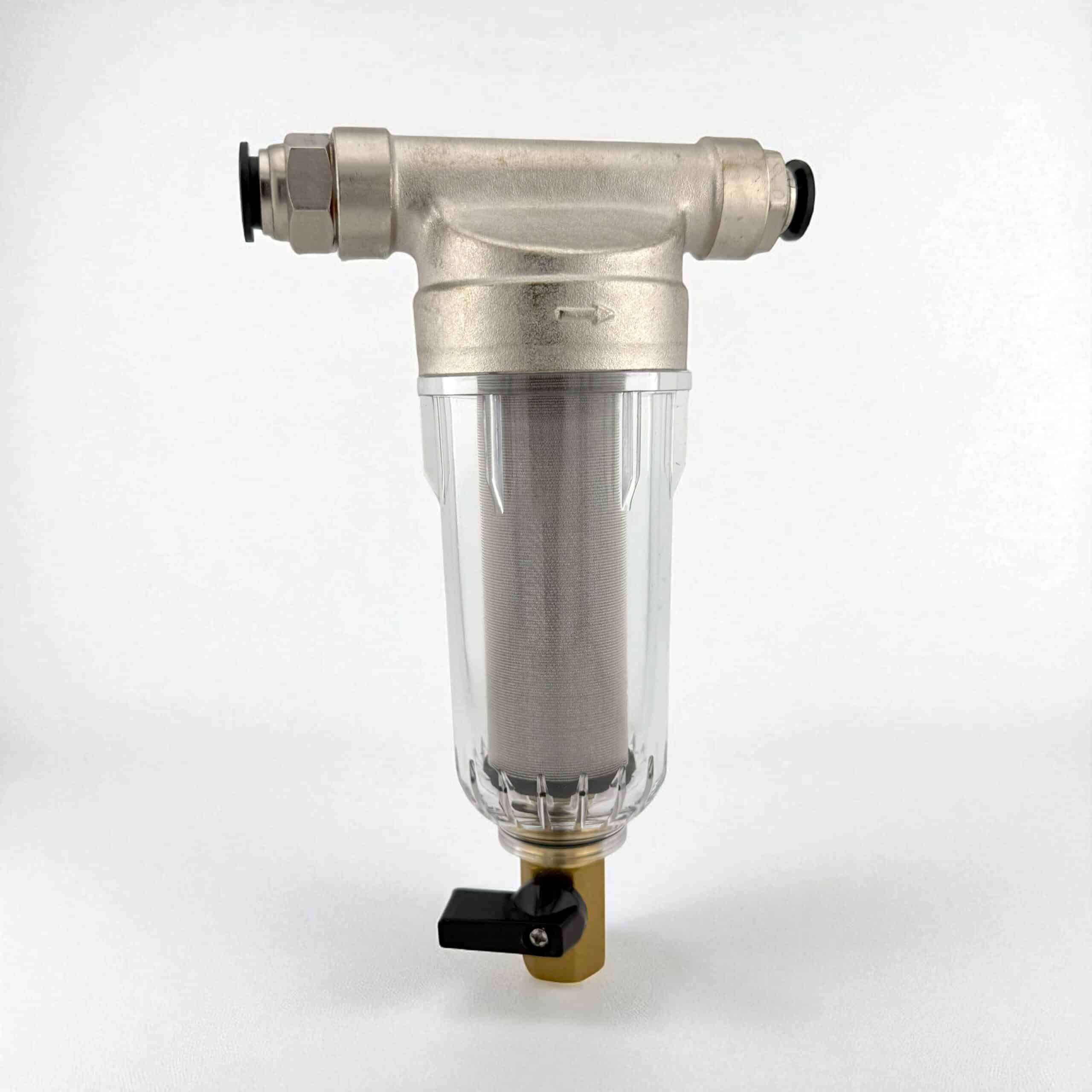

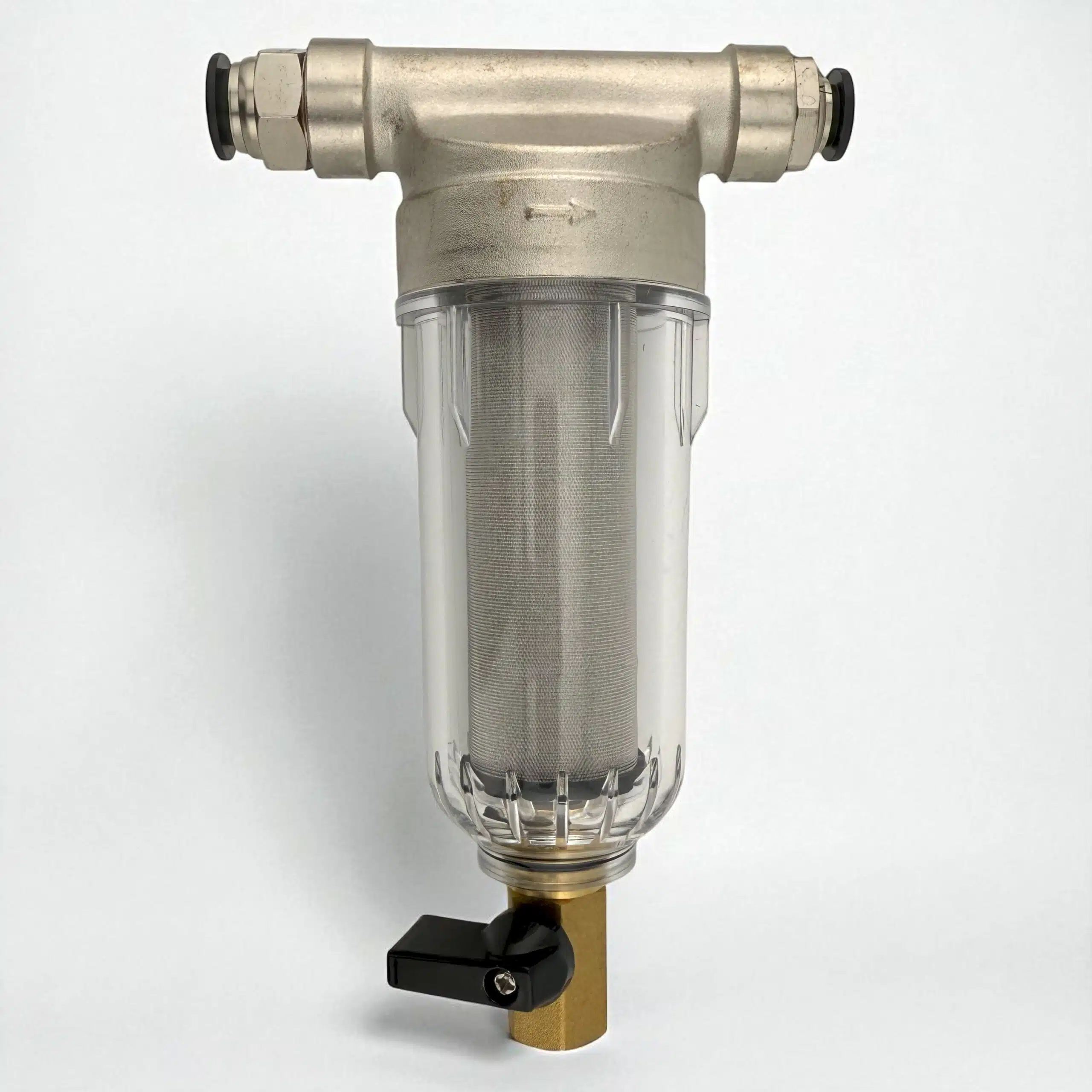

Filter change (if optional 0.5 micron filter is used) based on filter specifications. Filter cleaning if standard (included) filter is used is recommended at least once a season.
